Schema - Alexotos x Bowl is available in Pre-Order, from June 22nd. The shipping is planned for Q2 2027.
Pre-Order Date: June 22nd - July 31st, 2026
Estimated Shipping Date: Q2 2027
The Schema Input series is built around a simpler design language inspired by Bowl and the Manta. They wanted to take everything that made that project special and reinterpret it through a more minimal, brutalist lens.
This time around, they had a few goals in mind: a 60% layout with support for universal PCBs, compatibility with most hall-effect PCBs, and a proper poron gasket mount.
Schema - Alexotos x Bowl specifications:
- Materials: 6063 Aluminum, Acrylic, Copper, Brass
- Layout: 60% WK, WKL, HHKB

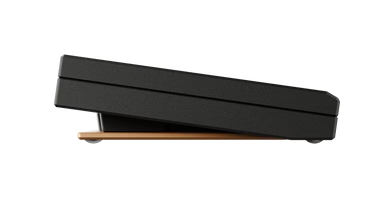

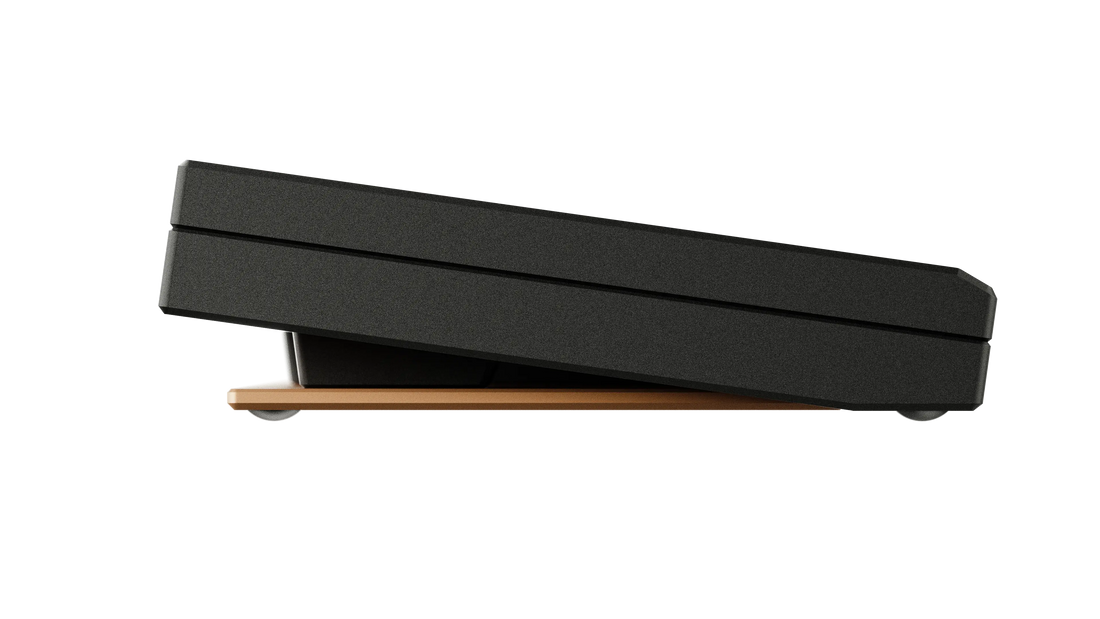

- Typing Angle: 8 Degrees
- Front Height: 19.1mm
- EKH: 24.0 mm
- Weight: 890g - 1300g
- Mounting: Poron Gasket Mount
PCB Layout:
Important Note: Only the MX plates are ISO compatible. Other ones are only ANSI compatible.
Solder
Hotswap
Wooting & SW HE
Mounting Design:
Stiff Plate
Soft Plate
PCB Specifications:
PCB Specifications:
Solder & Hotswap PCB:
- Material: Black FR4
- Thickness: 1.6mm
- Connectivity: JST to Unified Daughterboard
- Customizability: VIA
- Type: Solderable and Hotswap
- Designer: Gondolindrim
Metapulse EM60 v2 PCB:
- VIA Compatible
- Calibration Function
- Molex To JST
- Advanced EC Tuning Suite
- One-Shot, Tap-Hold & Dynamic Keystroke (e.g. for counter-strafe responsiveness)
- Wired-Only
- Supports MX-to-EC builds via GH60 mounting
SW Hall-Effect PCB:
- MCU: Dual MCU
- Polling Rate: 8K/Scan 52K and 32K
- Thickness: 1.6mm FR4
- Latency: 0.125ms
Includes:
Includes:
- 1x Top Case

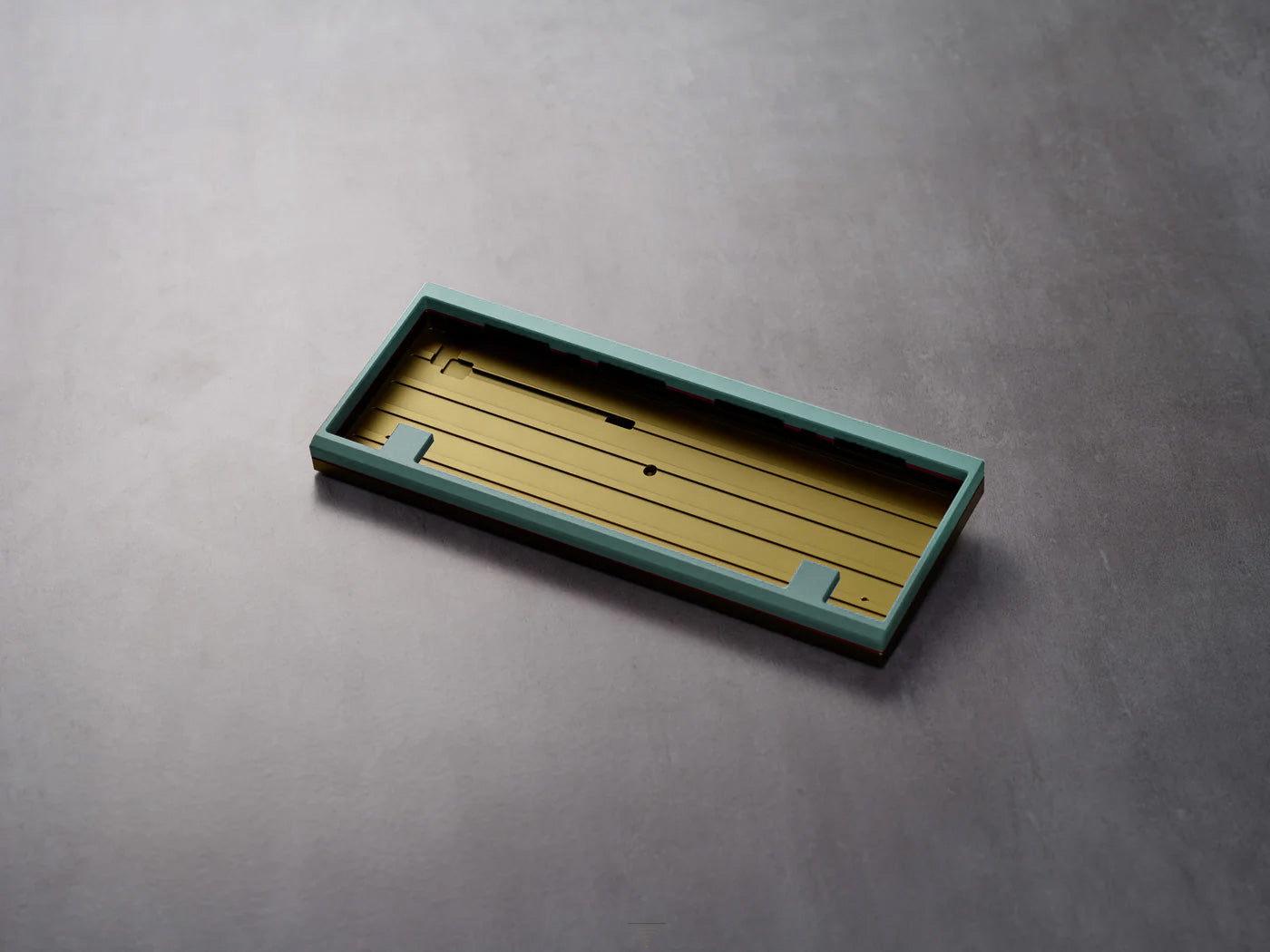

- 1x Bottom Case
- 1x External Weight
- 1x Choice of Plate
- 1x C5 Unified Daughterboard + JST to
- JST cable
- 1x Carrying Case
- 16x Poron Gasket Strip
- All Screws/Parts/Etc for assembly
*Note switches, keycaps and stabilizers are not included
Shipping Notice:
Shipping Notice:
Schema is available in Pre-Order. The shipping is planned for Q2 2027.
You can choose the Freight method of your choice : Express Air or Economy Train.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Customize my Schema
Schema - Alexotos x Bowl (Pre-Order)
Choose your option
Schema - Extra Parts (Pre-Order)
Choose your option
Schema - Extra Top Case (Pre-Order)
Choose your option
Schema - Extra Bottom Case (Pre-Order)
Choose your option
Schema - Extra Weight (Pre-Order)
Choose your option
Schema - Tool Tray
Choose your option
Weights

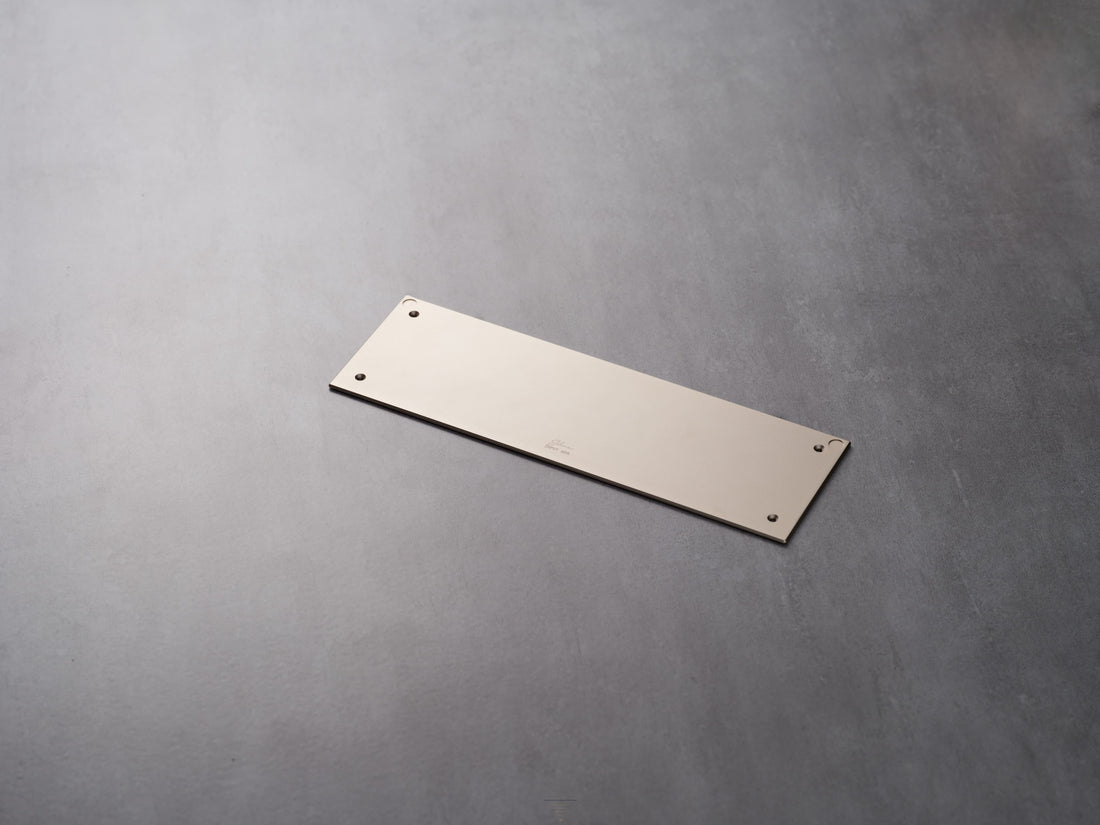

Pumice (Anodized Aluminum)

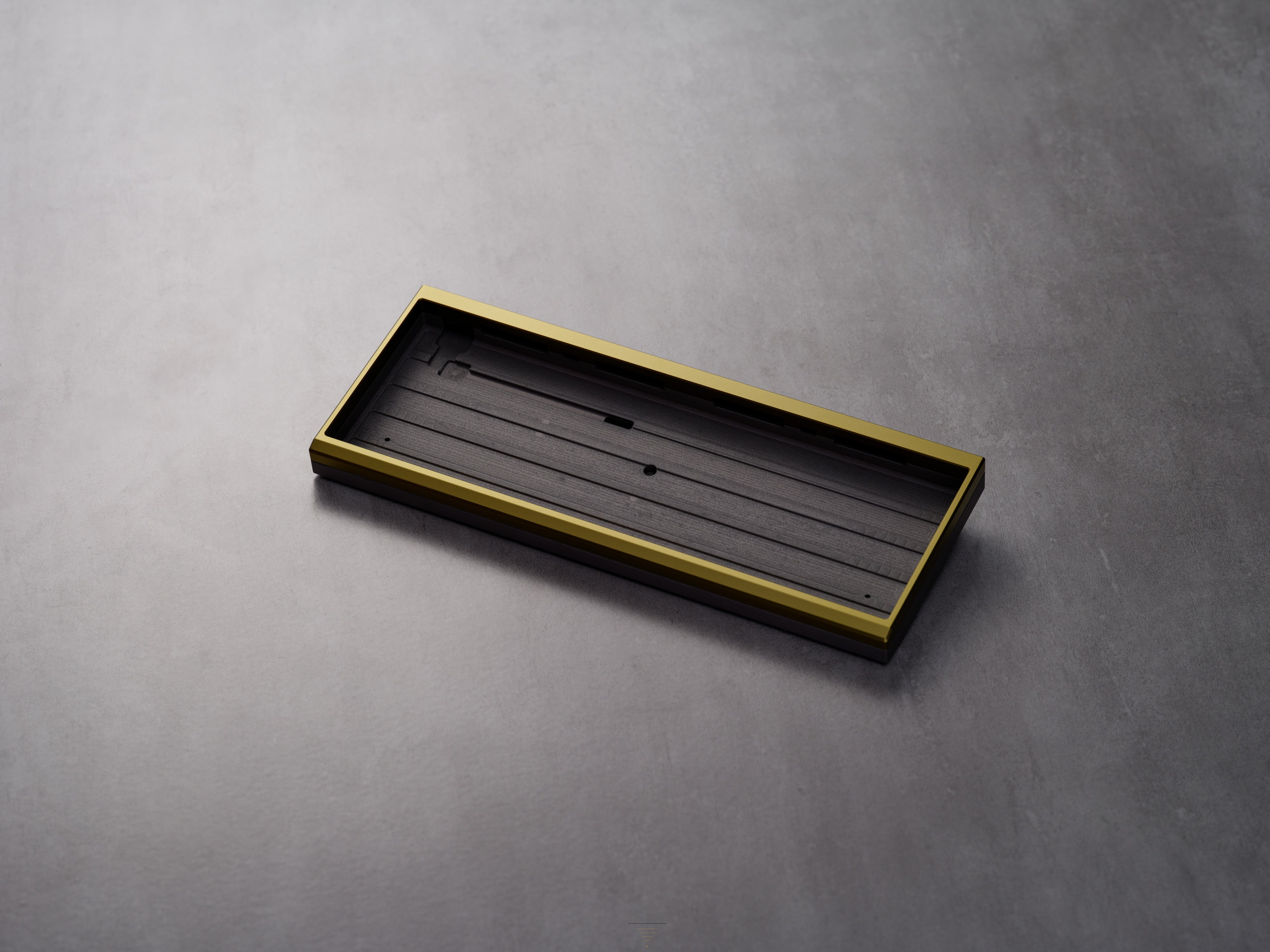

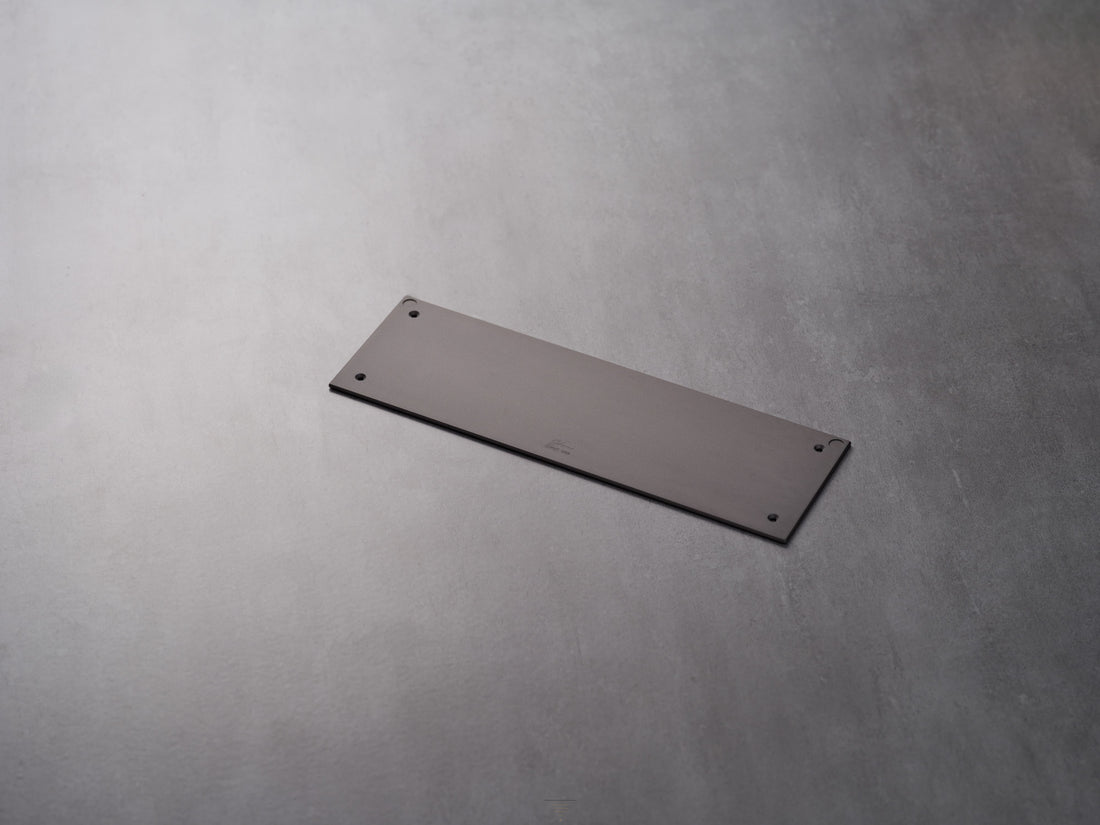

Aged (Force Patined Aluminum)

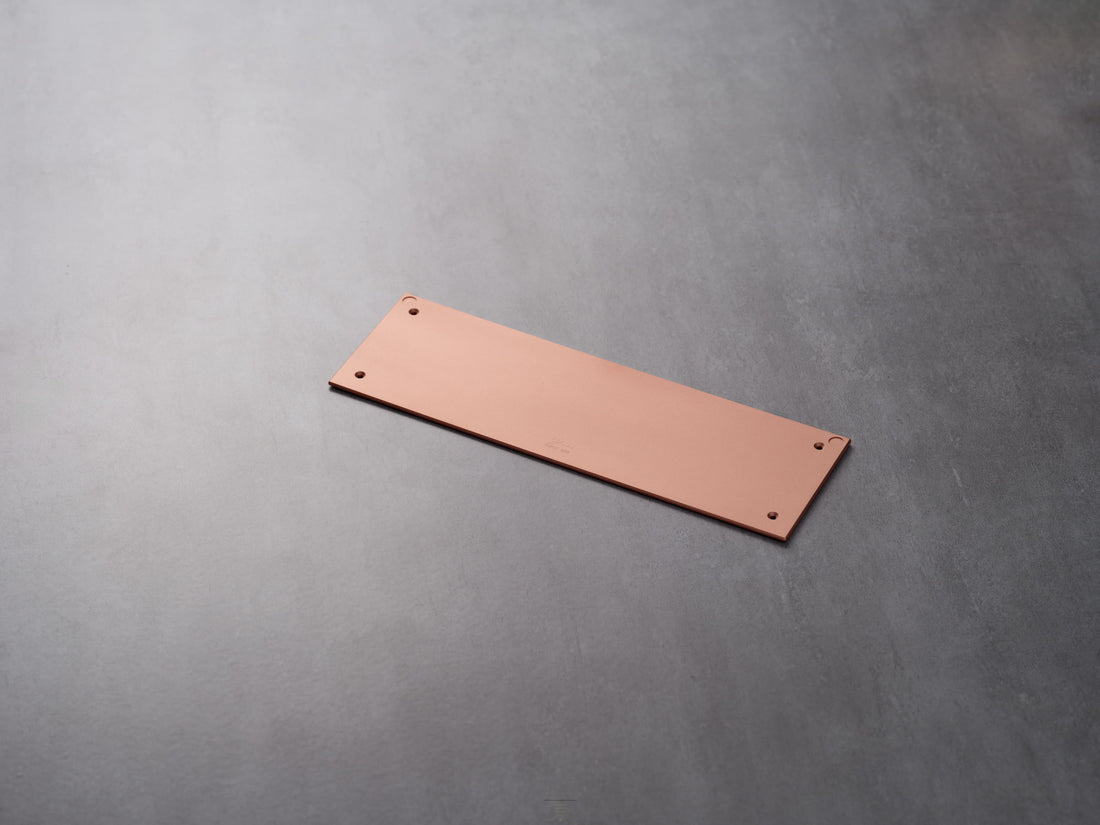

Copper (Sandblasted and Clear Coated Copper)

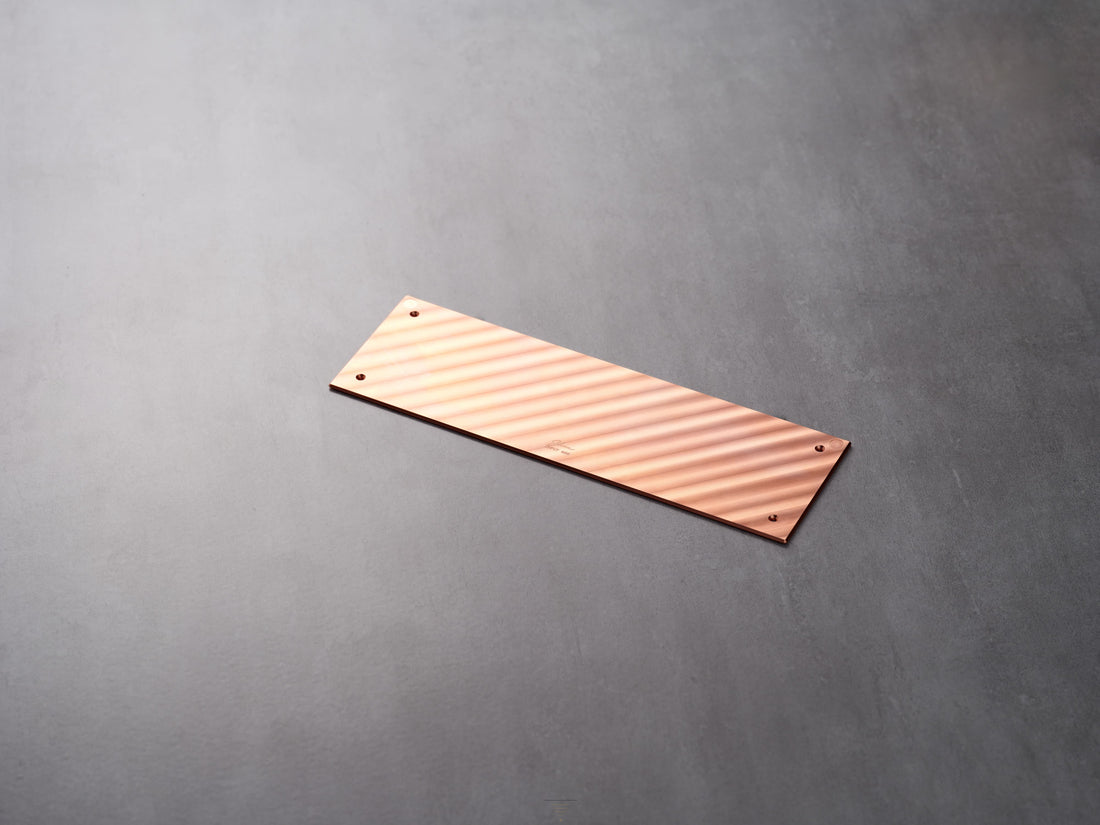

Machinist Copper (Machine Marked Copper)

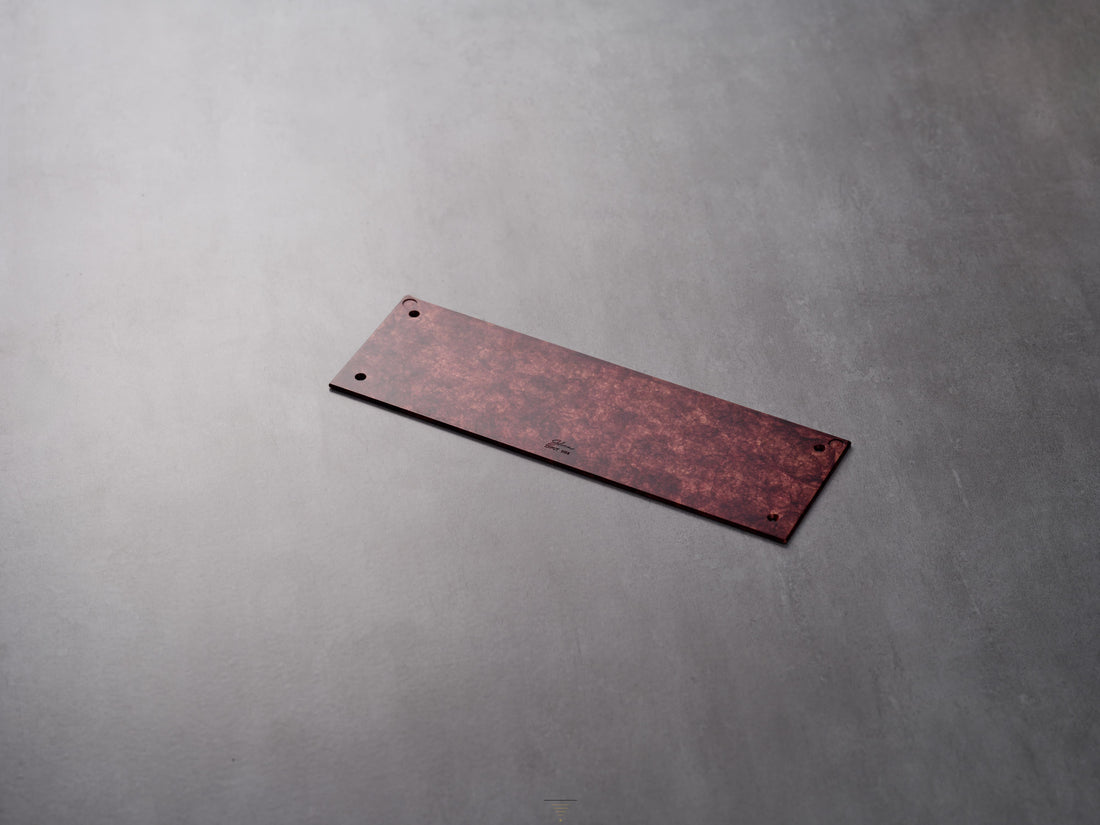

Red Patina (Force Patinated Brass)
