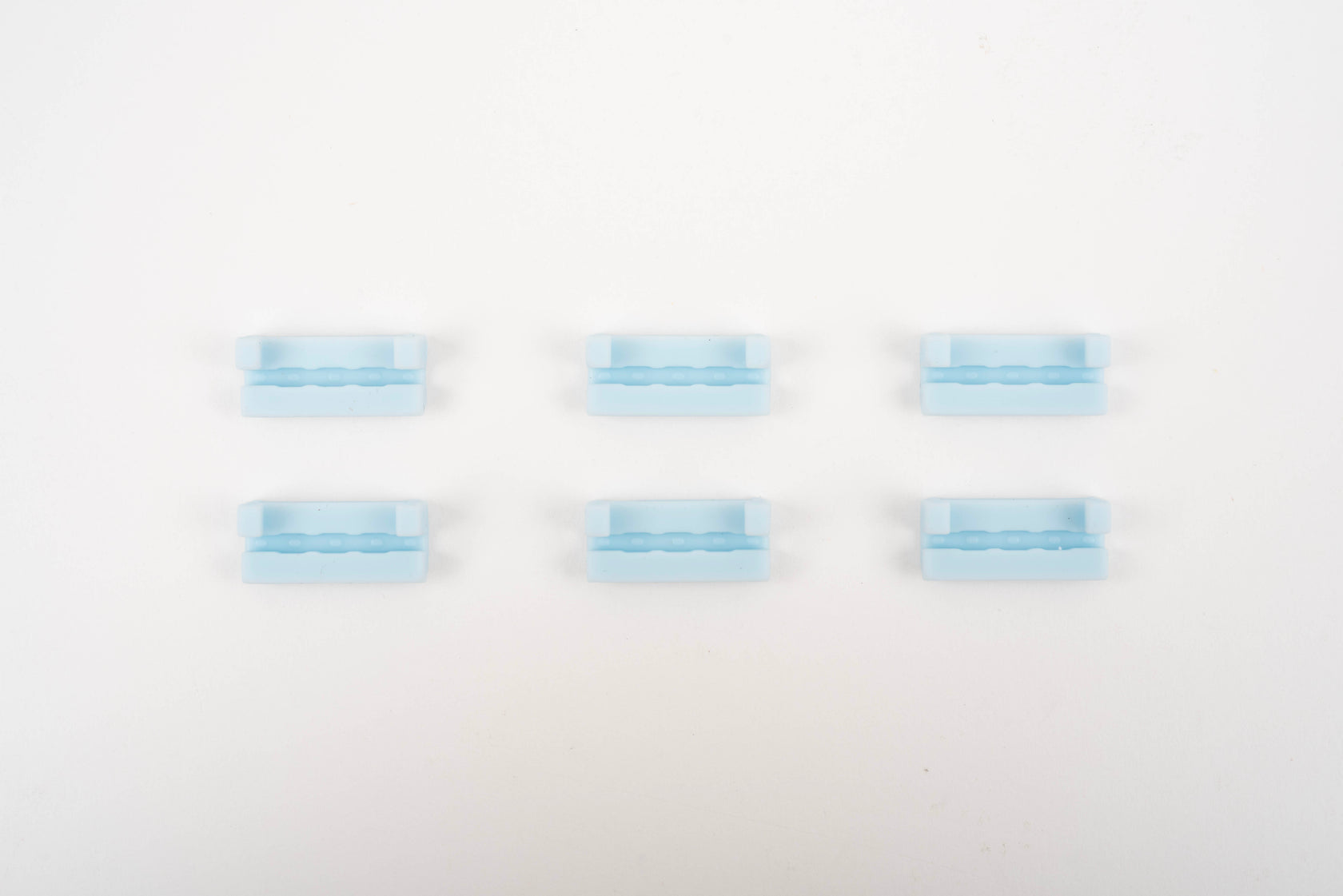

Geon x Nuxros KeySnap

Geon x Nuxros KeySnap specifications:

• 6 included in each set
• Alternative option to Gummy O-Ring Mount

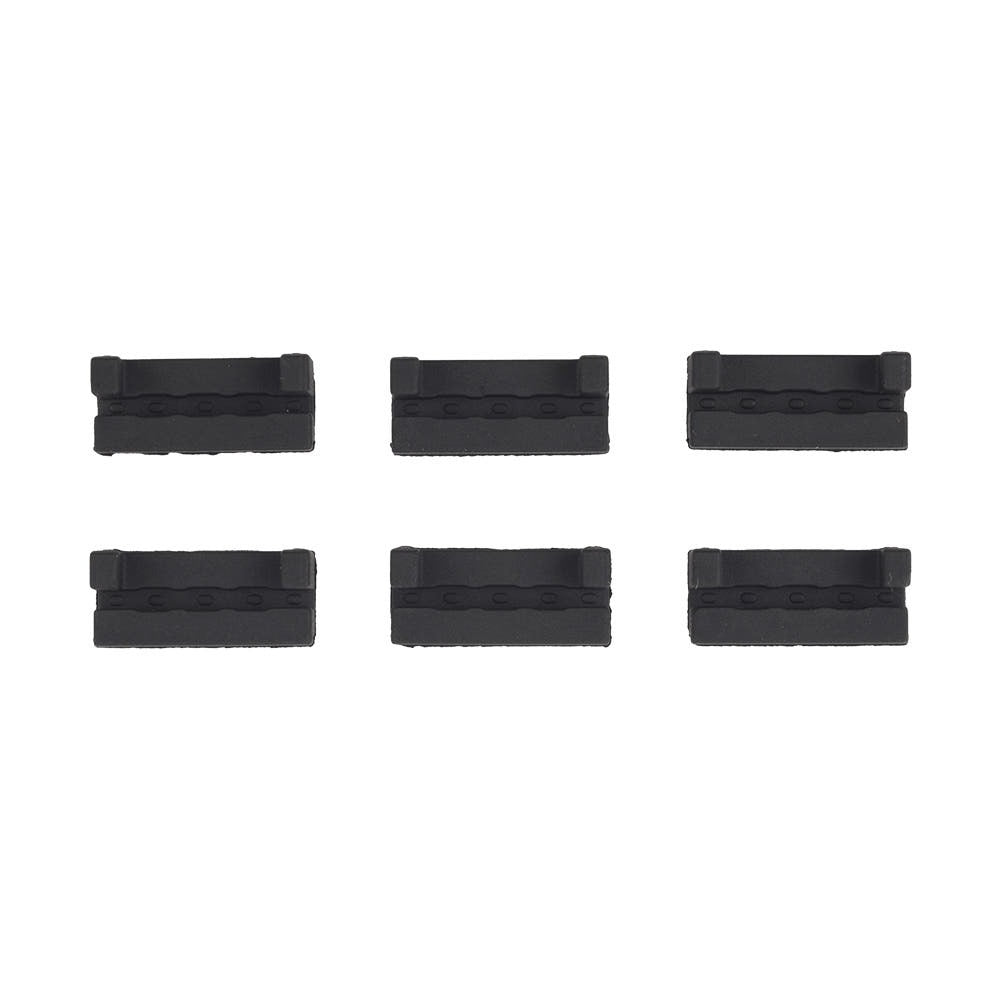

• Materials: Silicone 70A / FKM 70A
• Confirmed Compatible PCB: Venom60 MX 6.25U / 7U, Venom60 HE 6.25U / 7U, Glare60.
• Confirmed Compatible Cases: Frog Mini, Frog Mini Leggera / Pesante, Glare60, Sebas

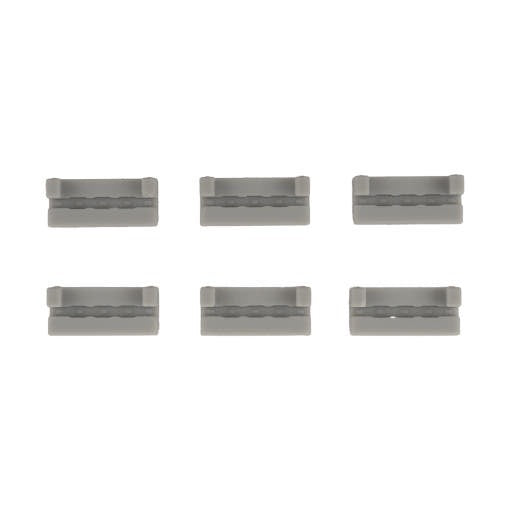

• Compatible with hotswap PCB but recommended to use the silicone material (gray). Fitment will be tight.
• When using the FKM material (black), it is recommended to use no more than two on the top side.

Examples on how to mount the KeySnap onto the PCB/Plate:

Make sure to install the KeySnap avoiding the indicated area:

• If the KeySnap is installed and overlaps the marked area, it will interfere with the bottom case and prevent proper case assembly
