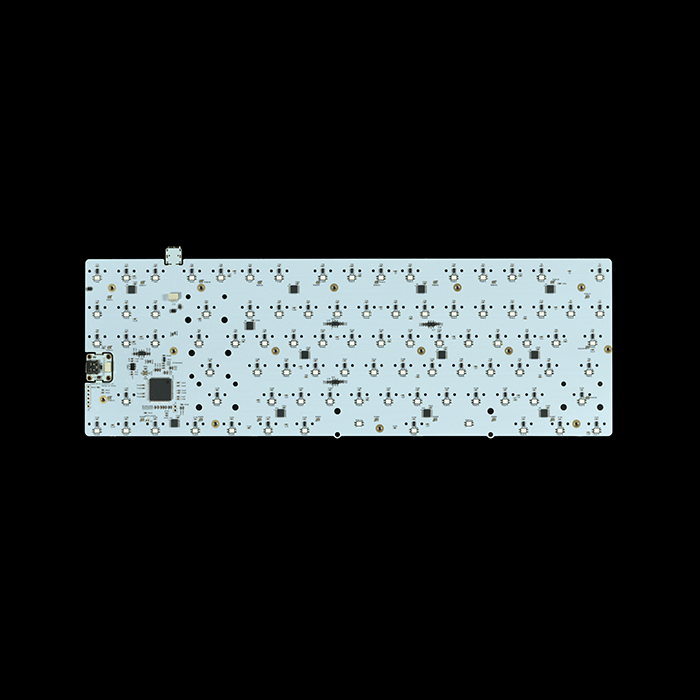

Geon Venom TKL HE RGB PCB

Geon Venom TKL HE RGB PCB specifications:

• Hall-Effect PCB
• RGB
• Web-based firmware (https://venom.how/)
• H87 F12 TKL Layout (80%)

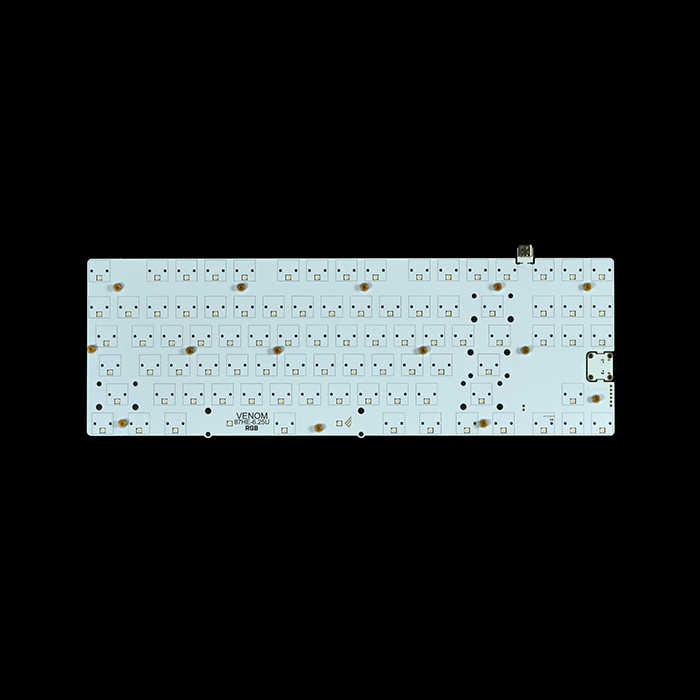

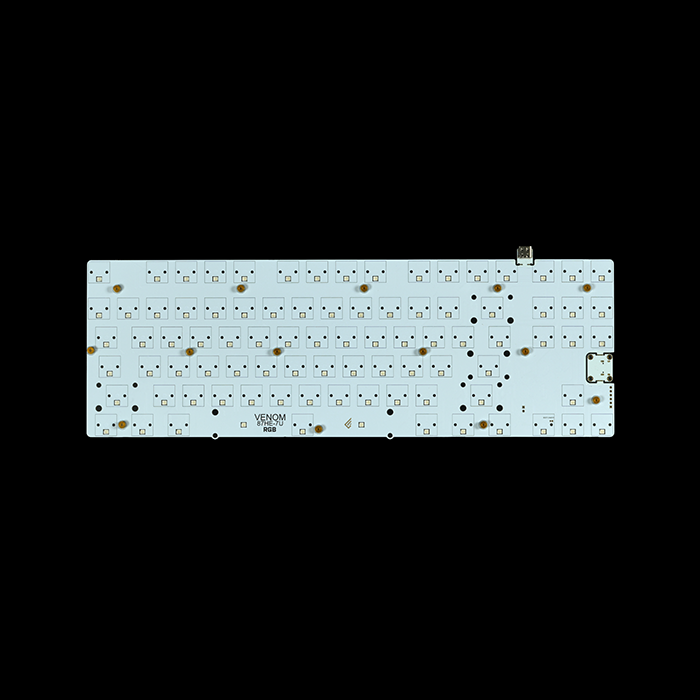

• Available in 6.25U and 7U spacebar layouts
• Material: FR4
• Thickness: 1.6mm
• Optional Daughterboard Included
  • No JST cable and no screws included
  • Must be removed prior to using the PCB, as electricity may flow through it. Use a nipper for removal.
• Plate Files: Link
• Made in China

Compatible Switches:

- Geon Raptor HE
- Geon RAW HE
- Geon Lucifer HE
- Gateron KS-20 / KS-20T, etc.
- N-pole switch, 1600gs or less at bottom magnetic force

Before assembly:

• Built to the Hiney H87c / H87nu size, the custom keyboard standard.
• Run a PCB test and check that every key works before assembling.
• Remove the yellow tape on the PCB stand-offs before fitting the screws.
• Use all 14 screws to assemble the PCB and the plate.
• Foam sets are optional. Cut the space bar area to fit your layout.
• Once removed, the C-type port cannot be put back on.
• For JST cables, use a cable with the same pin layout on both ends.
